Proteina-Complexa Model Overview

Architecture and Target Conditioning. Proteina-Complexa builds on La-Proteina's partially latent flow matching framework and extends it to conditional binder design. Generation is achieved by iterative denoising (see animation). Key design choices:

• Continuous latent protein representation. An autoencoder encodes fully atomistic proteins into alpha-carbon backbone coordinates paired with continuous per-residue latent variables that capture amino acid identity and side-chain geometry—and decodes them back. This avoids discretization artifacts and enables accurate atomistic modeling.
• Target-conditioned denoising. Only the flow model's denoiser conditions on the target; the autoencoder remains shared across all target types. Target features (Atom37 coordinates, amino acid identities, hotspot tokens) are embedded and jointly processed with the binder's noisy representation through a transformer with pair-biased attention.
• Joint sequence and structure output without redesign. The model generates both sequence and fully atomistic structure simultaneously. Unlike prior approaches, generated sequences are used directly; no separate redesign step is required.

See Figure 1 and our paper for full details.

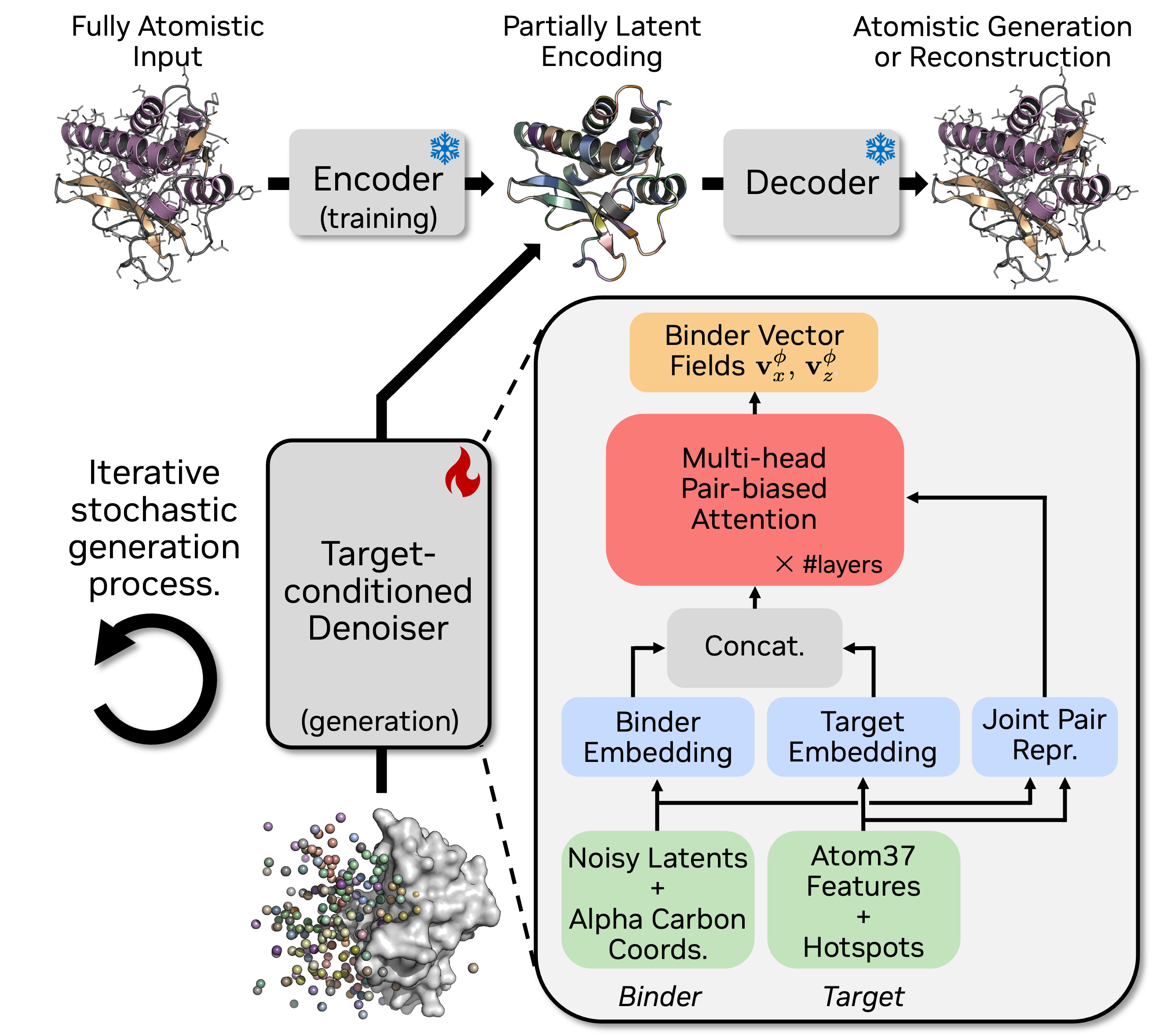

Figure 1. Proteina-Complexa's architecture. A frozen autoencoder (top) encodes fully atomistic proteins into a partially latent representation (alpha-carbon coordinates + continuous per-residue latents) and decodes them back. The target-conditioned denoiser (bottom) concatenates embedded target features (Atom37 coordinates, amino acid identity, hotspot tokens) with the binder's noisy latent and backbone embeddings, processing them jointly through multi-head pair-biased attention layers.

Test-Time Compute Scaling. Current binder design methods either rely purely on generation (training-time optimization) or purely on hallucination (inference-time optimization without a generative prior). Proteina-Complexa unifies both paradigms—to our knowledge, a first in structure-based binder design. We steer the generative denoising process using rewards from structure prediction confidence (ipAE) and interface hydrogen bond energies (see Figure 2):

• Best-of-N sampling — scale compute by growing the candidate pool.
• Beam search — maintain and prune parallel denoising trajectories by reward.
• Feynman–Kac steering — importance sampling toward the reward-tilted distribution.
• Monte Carlo tree search — explore the denoising trajectory tree, balancing exploration and exploitation.
• Generate & Hallucinate — initialize hallucination refinement (e.g., BindCraft) from generative model output rather than from scratch.

This latent generative search framework is general and can incorporate many different objectives; reward differentiability is not necessary. The adjacent animation shows a binder being iteratively refined to increase interface hydrogen bonds. All strategies leverage Proteina-Complexa's fast, fully transformer-based architecture, making repeated rollouts computationally feasible. Scaling inference-time compute via extended search during the generative denoising process allows the model to produce candidates with high scores even for difficult targets.

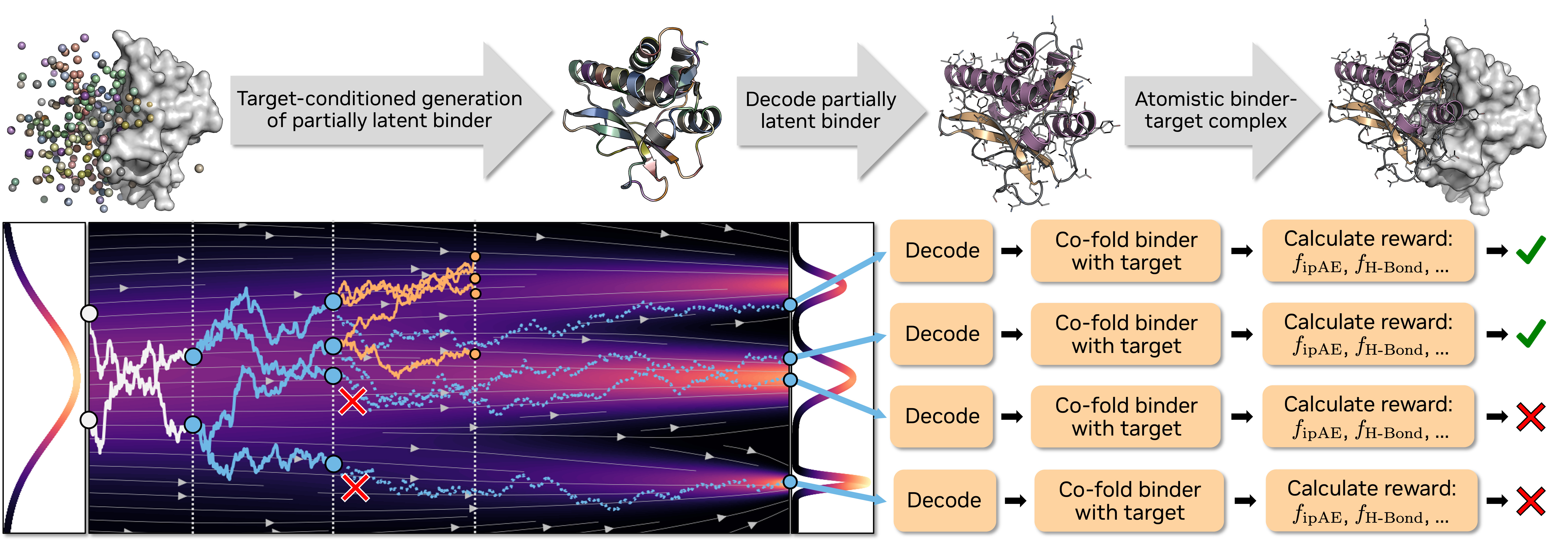

Figure 2. Proteina-Complexa's generation and inference-time optimization pipeline. (Top) Target-conditioned generation: from noise around the target, the model iteratively denoises a partially latent binder, decodes it, and produces a fully atomistic binder-target complex. (Bottom) Beam search for inference-time optimization: multiple stochastic denoising trajectories (colored paths) are maintained in parallel. At regular intervals, each candidate is rolled out to completion—decoded, co-folded with the target, and scored. Promising trajectories (green checks) are retained while low-scoring ones (red crosses) are pruned, and new branches are launched from the surviving candidates.

The Teddymer Dataset

Binder design requires paired binder-target data, yet experimentally resolved multimers in the PDB are scarce. We exploit the fact that domain-domain interactions within AlphaFold Database (AFDB) monomers closely resemble chain-chain interactions in real multimers. Using TED structural domain annotations, we split AFDB monomers into domains and assemble synthetic dimers: 47M AFDB50 structures → 10M dimers (filtered by proximity and CATH annotations) → 3.5M Foldseek clusters → quality-filtered training set. The resulting Teddymer dataset is an order of magnitude larger than the PDB. Proteina-Complexa trains in stages across four datasets: AFDB monomers, Teddymer dimers, PDB multimers, and PLINDER protein-ligand pairs (Figure 3).

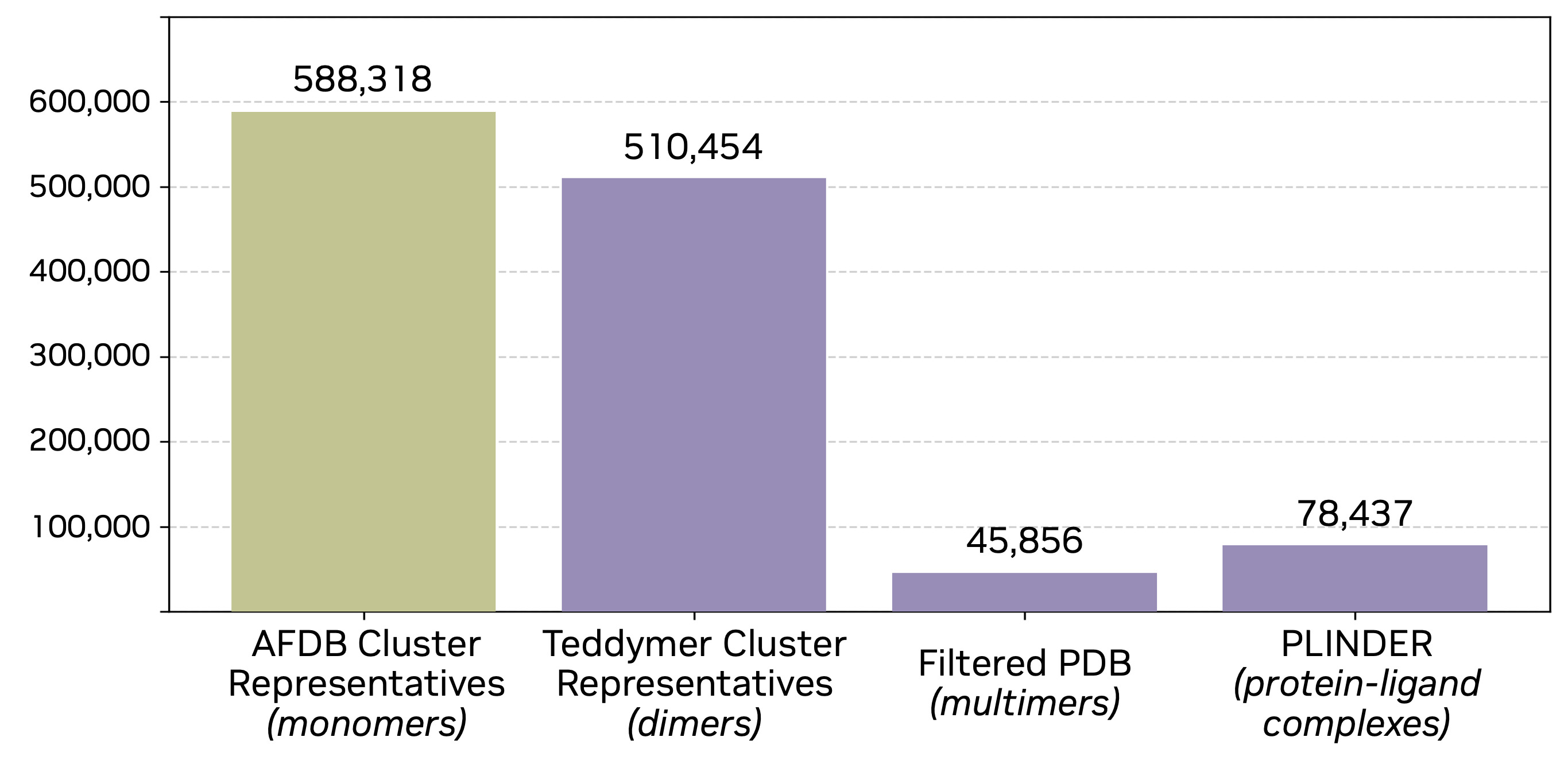

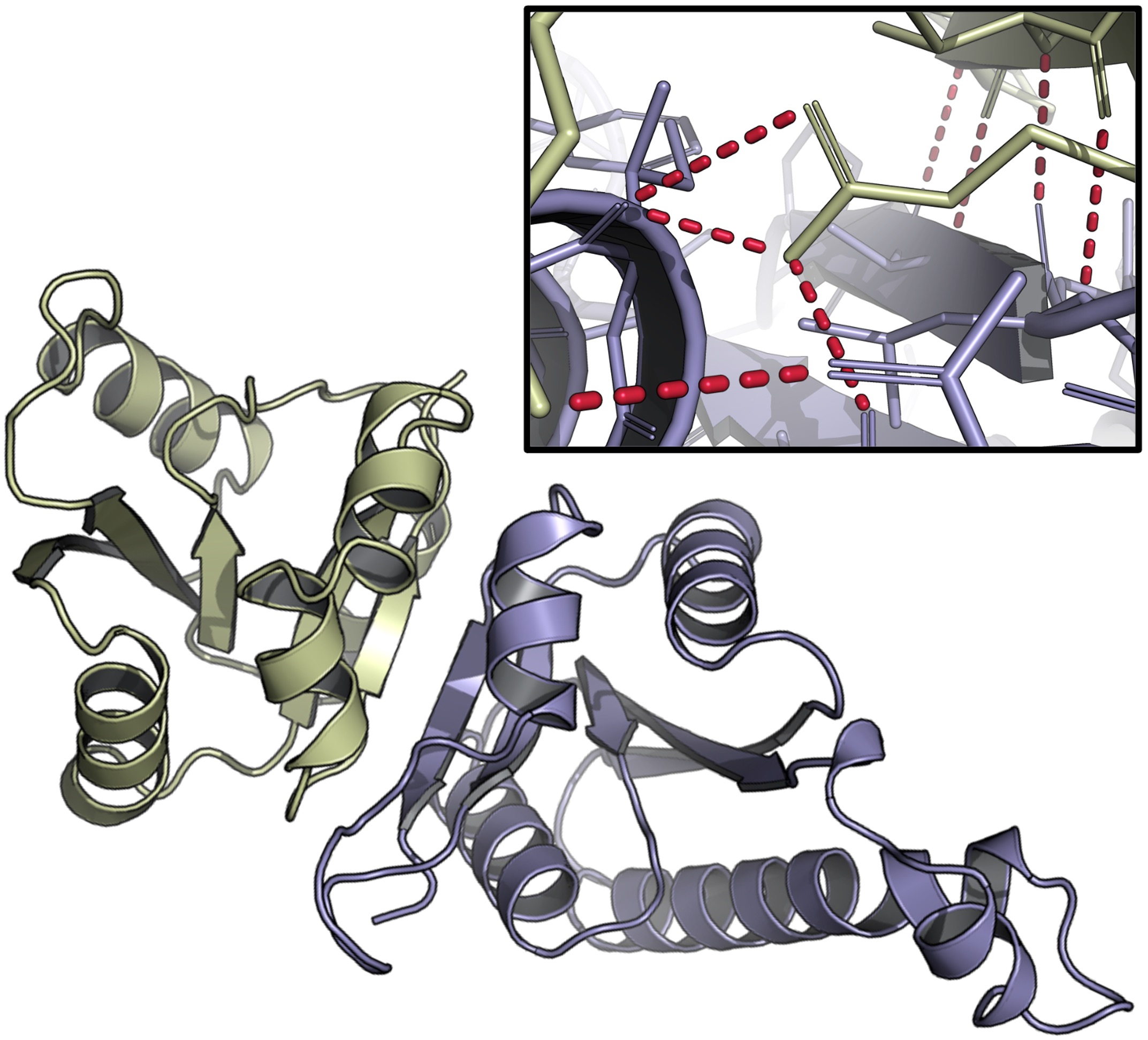

Figure 3. The Teddymer dataset. (Left) Representative Teddymer dimer, constructed by splitting an AFDB monomer into its structural domains (colored chains). The zoom-in highlights interface hydrogen bonds, illustrating that domain-domain interfaces exhibit realistic biophysical interactions. (Right) Overview of the filtered training datasets used by Proteina-Complexa.

Visualizations of Generated Binders

Protein Binders. Proteina-Complexa can generate in-silico mini-binder candidates against single-chain and multi-chain targets. Below, the target is shown with transparent surface and interface hydrogen bonds are highlighted in red. Quantitative evaluations in performance section.

Small Molecule Binders. Our model can also design binders to bind small molecules, as shown in the examples below. Generated binders use purple and gold color for alpha helices and beta sheets, respectively. Note that all depicted samples in this section fulfill in-silico success criteria (see our paper for details). Quantitative evaluations below.

Enzyme Design. Proteina-Complexa can also tackle enzyme design, following the Atomic Motif Enzyme (AME) benchmark. An atomistic motif of the enzyme active site is provided together with the substrate molecule, and the model must design a protein that faithfully reconstructs the catalytic residues while accommodating the ligand without steric clashes. See example in Figure 4.

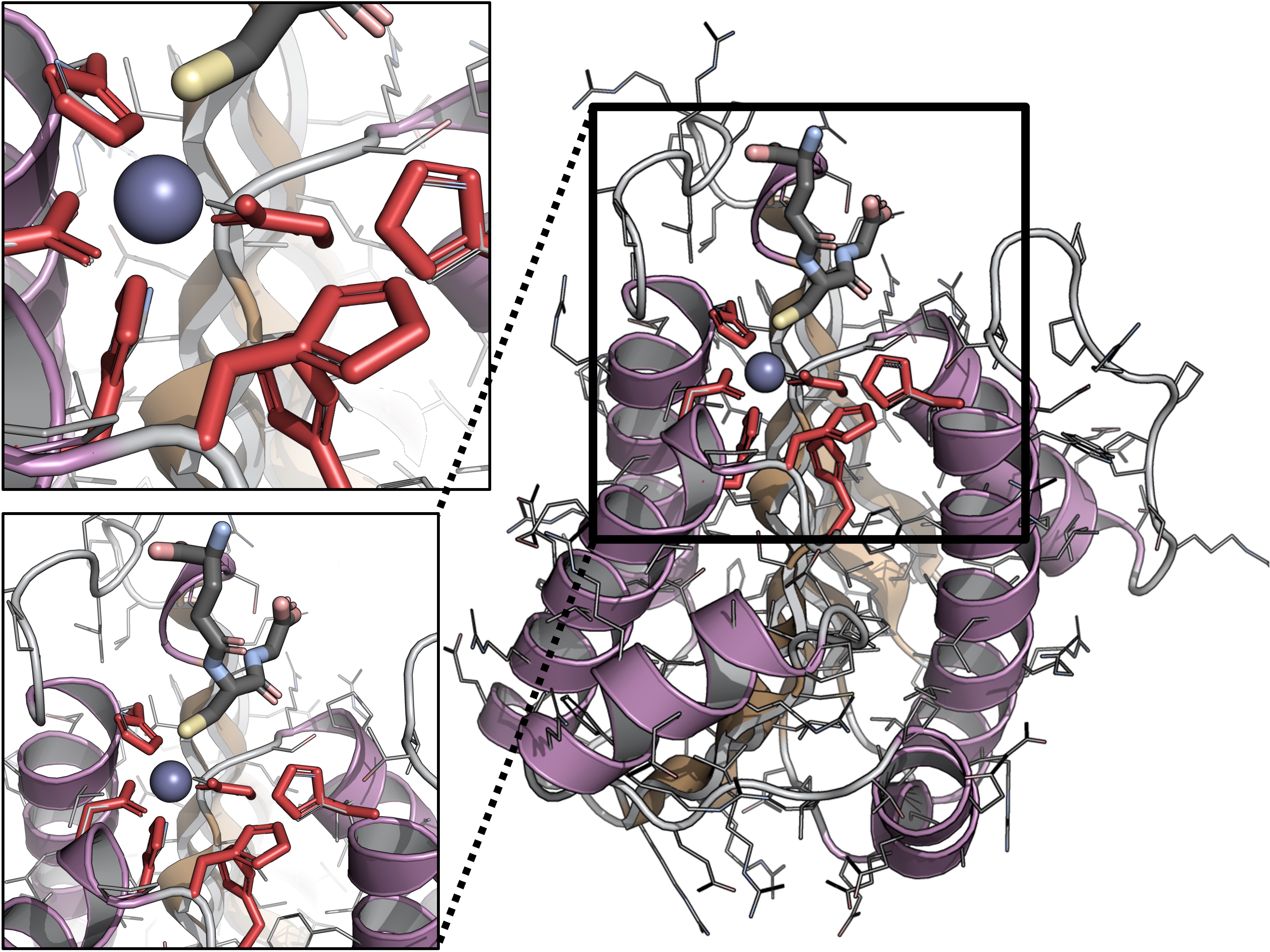

Figure 4. AME task M0157 (glyoxalase II, PDB: 1QH5). Two structurally diverse designs generated by Proteina-Complexa for a challenging 6-residue-island active site. This zinc-dependent metalloenzyme requires precise placement of multiple histidine and aspartate residues coordinating the catalytic zinc ions (blue sphere). Left and right show two independent generations with distinct overall folds, both faithfully reconstructing the full catalytic geometry (given side chain structures are shown as thick red sticks). The zoom-ins reveal the reconstructed active site residues surrounding the zinc center and the bound glutathione-derived substrate, confirming accurate motif reconstruction.

Interface Hydrogen Bond Optimization. Proteina-Complexa's inference-time optimization framework can include interface hydrogen bond energies alongside structure prediction rewards, allowing us to generate binders with enhanced interface hydrogen bonding and extended interaction surfaces. This highlights the generality of our test-time scaling approach: structure-based and physical energy-based rewards can be jointly optimized—a capability not available in prior hallucination methods, which only considered folding model scores. See Figure 5.

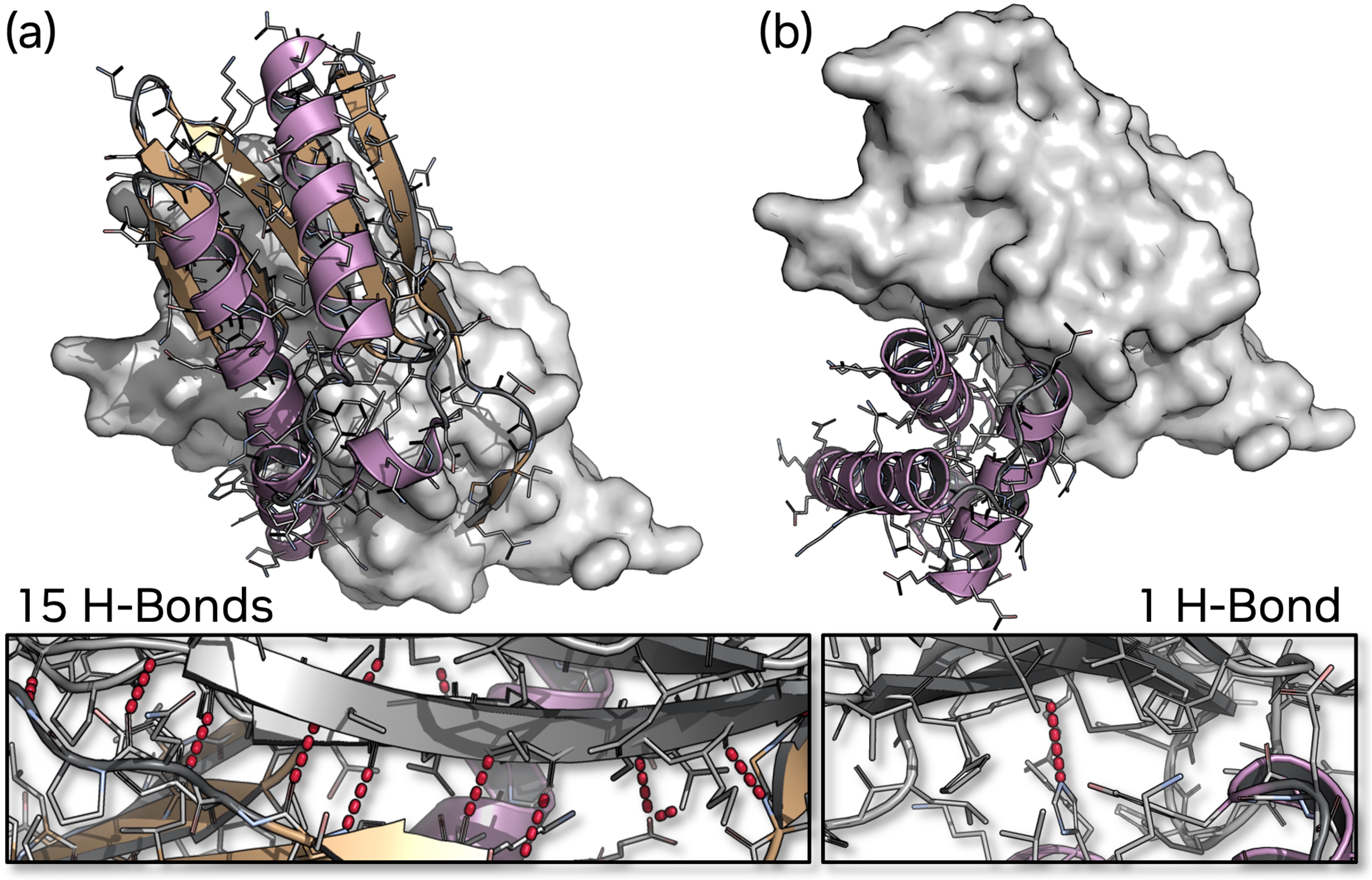

Figure 5. Interface hydrogen bond optimization (TrkA target). (a) A binder generated with hydrogen bond energy optimization forms extended interface with 15 hydrogen bonds (red, zoom-in), creating dense network of biophysical interactions across a large contact area. (b) A binder generated without hydrogen bond optimization still passes in-silico success criteria but is smaller, with only 1 interface hydrogen bond.

Fold Class-Conditioned Binder Generation. Previous protein generators often produce primarily alpha-helical outputs. By conditioning Proteina-Complexa on fold class labels, we can explicitly control the secondary structure composition of generated binders. This enables generating structurally diverse binders on demand, providing important control. See Figure 6.

Figure 6. Fold class-conditioned binder generation (IFNAR2 target). Left: mainly alpha-helical binder (purple helices). Center: mainly beta-sheet binder (gold strands). Right: mixed alpha-beta binder combining both secondary structure elements.

In silico Performance and Benchmarking

Generative Base Model. We first evaluate Proteina-Complexa's generative model without test-time optimization against publicly available generative baselines. For each method and target, we generate 200 binders and assess them using established in-silico success criteria based on structure prediction model confidence and alignment scores (see our paper for details), how often a method wins across targets, per-sample generation time, and novelty against PDB. Proteina-Complexa significantly outperforms all baselines on both protein and small molecule targets—even when using its own co-generated sequences directly, without ProteinMPNN-based redesign (Table 1, Table 2).

Table 1. Protein target benchmarking (19 targets, 200 samples each). Self: model-generated sequences. MPNN-FI: ProteinMPNN redesign with fixed interface. MPNN: full backbone redesign. Best in green.

Model	# Unique Successes ↑				# Times Best ↑			Time [s] ↓	Novelty ↓
	Self	MPNN-FI	MPNN		Self	MPNN-FI	MPNN
RFDiffusion	—	—	4.68		—	—	3	70.8	0.87
Protpardelle-1c	—	—	0.73		—	—	0	8.13	0.77
APM	0.31	1.52	3.15		1	0	1	73.1	0.86
Complexa (ours)	9.10	13.6	14.4		14	14	14	15.6	0.80

Table 2. Small molecule target benchmarking (4 targets, 200 samples each). Unique successes per molecule. RFDiffusion-AllAtom uses LigandMPNN; Proteina-Complexa uses self-generated sequences.

Model	# Unique Successes ↑				Time [s] ↓	Novelty ↓
	SAM	OQO	FAD	IAI
RFDiffusion-AllAtom	2	3	5	8	87.4	0.72
Complexa (ours)	10	6	17	19	13.5	0.71

Inference-Time Compute Scaling. We compare Proteina-Complexa's test-time scaling methods against hallucination baselines (BindCraft, BoltzDesign, AlphaDesign), plotting unique success rate as a function of compute. For easy protein targets, simple best-of-N sampling already outperforms all baselines; for hard targets, structured search (beam search, FKS, MCTS) is required. Across the board, hallucination methods perform poorly under matched compute budgets, while Proteina-Complexa's approaches consistently lead by a large margin. The same pattern holds for small molecule targets, where Proteina-Complexa far outperforms BoltzDesign (Figure 7, Figure 8).

Figure 7. Inference-time compute scaling for protein targets. Unique success rate vs. optimization time (GPU hours) for easy targets (left) and hard targets (right). Proteina-Complexa's search methods (colored curves) consistently outperform hallucination baselines (BindCraft, BoltzDesign, AlphaDesign) under normalized compute budgets.

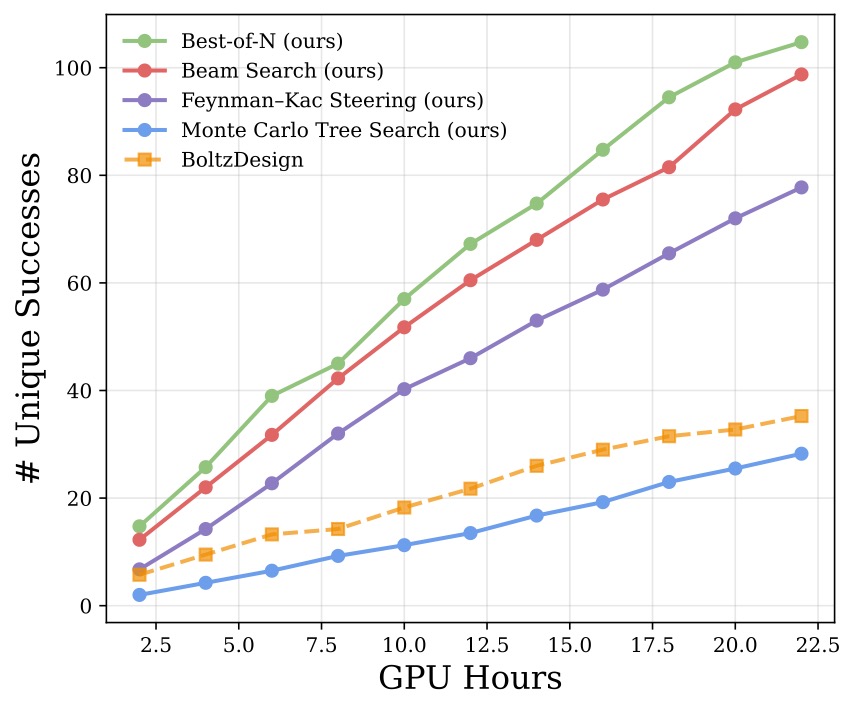

Figure 8. Inference-time compute scaling for small molecule targets. Unique success rate vs. optimization time, averaged over four molecule targets. Proteina-Complexa's methods again substantially outperform BoltzDesign, the only available hallucination baseline for small molecules.

Enzyme Design (AME Benchmark). We evaluate Proteina-Complexa on the Atomic Motif Enzyme (AME) benchmark, where the model must design a protein that faithfully reconstructs a given active-site motif while accommodating the substrate molecule. The benchmark comprises 41 tasks with 1–7 catalytic residue islands of increasing difficulty. Proteina-Complexa significantly outperforms RFDiffusion2 on nearly all tasks, both with self-generated sequences and LigandMPNN-redesigned sequences (Figure 9).

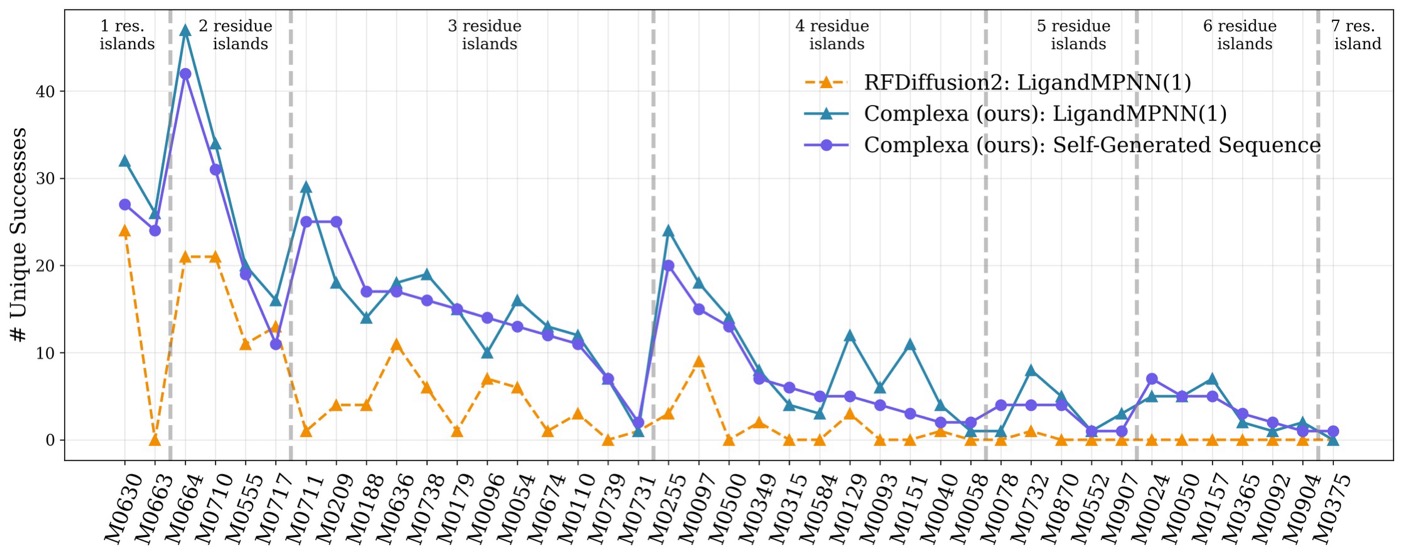

Figure 9. AME enzyme design benchmark results. Number of unique successes per task (41 tasks, 100 samples each) for Proteina-Complexa vs. RFDiffusion2, comparing self-generated sequences, single LigandMPNN redesign, and best-of-8 LigandMPNN redesigns. Proteina-Complexa outperforms RFDiffusion2 on the vast majority of tasks across all evaluation settings.

This large-scale experimental validation effort of Proteina-Complexa is a cross-institutional collaboration led by NVIDIA with Manifold Bio, Viva Biotech, Novo Nordisk, Duke University, Cambridge University, LMU Munich and Leipzig University. Here, we provide highlights; see the preprint for details.

The Latent Generative Search Framework

Our campaigns use the latent generative search framework: Proteina-Complexa codesigns binder sequence and structure in a continuous latent space, and reward-guided search steers generation at inference time. There is no separate inverse folding step (Part 1 above describes the model and the search algorithms in detail). The conditioning input, reward definition, and scoring models change from one target class to the next (Figure 10).

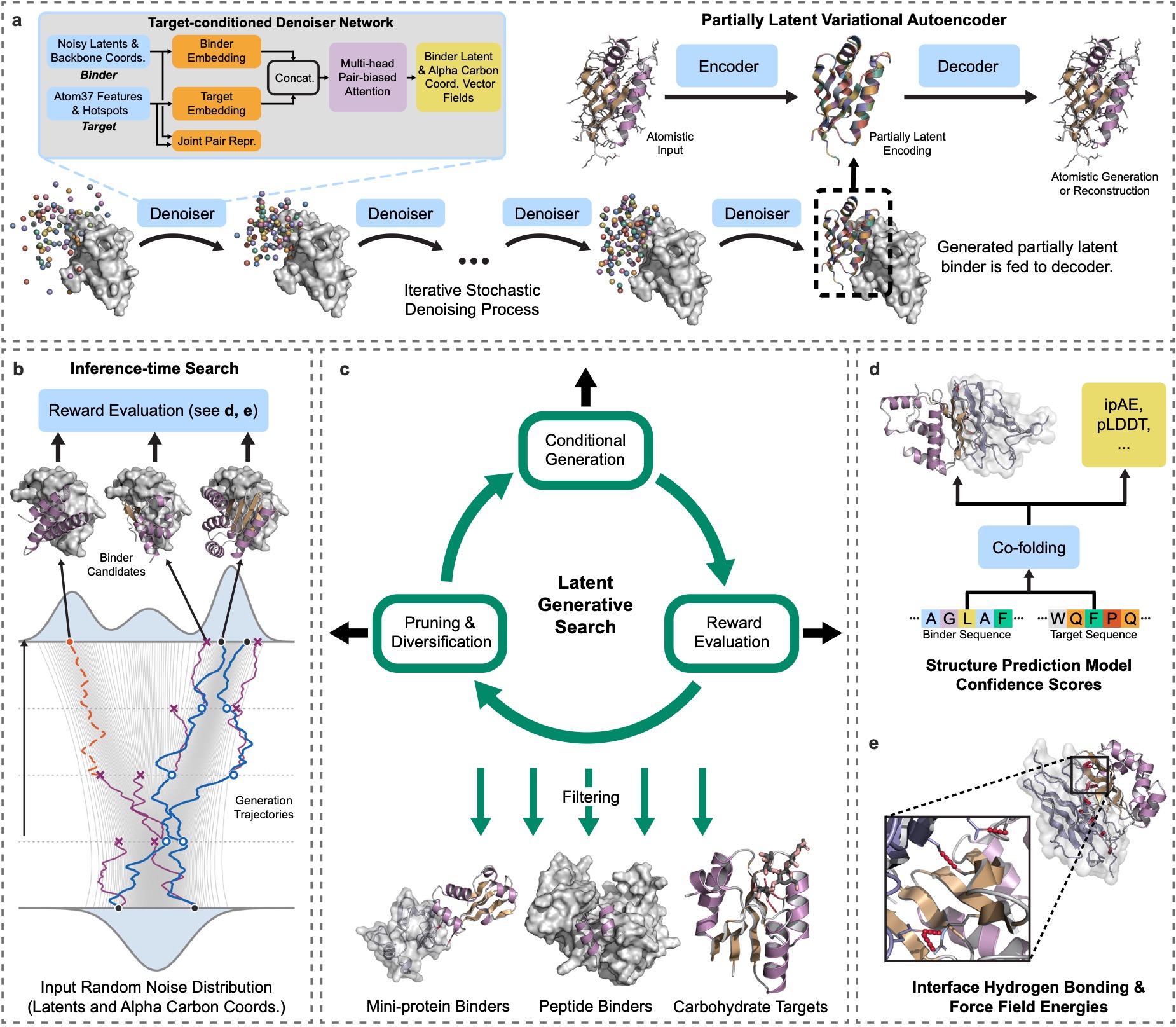

Figure 10. Latent generative search for de novo protein binder design. (a) The conditional codesign generator, Proteina-Complexa, generates binder structure and sequence together using a partially latent representation. A target-conditioned denoiser network iteratively transforms random noise into backbone coordinates and latent variables, after which a decoder maps the codesigned latent binder representation to a fully atomistic output. An auxiliary encoder is used during training of the variational autoencoder. (b) Generative sampling trajectories are guided towards high reward regions of the solution space according to task-relevant scoring models in an inference-time search process. Low-scoring trajectories are terminated, whereas promising trajectories are expanded and diversified, for example through beam search. (c) The complete latent generative search protocol alternates between generative denoising rollouts, reward-based trajectory evaluation, and the subsequent selection and expansion of promising trajectories. The resulting candidates may undergo a final filtering stage using additional scoring functions. The same framework supports diverse design tasks—including monomers, mini-protein binders, peptide binders, and binders to carbohydrate targets—by adapting the conditioning input, reward definition, and scoring models. (d) Confidence metrics from structure prediction models, including ipAE and pLDDT, can serve as rewards during search or as criteria for final filtering. (e) Interface hydrogen bonding scores and molecular force fields provide complementary physics-based scoring functions.

Massive-Scale Benchmark: Testing 1 Million Binders for 127 Targets

We conducted a massive-scale multiplexed phage display campaign with all-to-all binding readout: 1,015,870 designed sequences screened against 127 targets in a single experiment, including diverse, novel, and challenging ones.

Coverage of a 127-target panel. Screening Proteina-Complexa designs across all targets and diverse epitopes reveals broad coverage, with binding strongly enriched toward the intended targets (Figure 11, Table 3). Proteina-Complexa produces on-target hits for 115 of 127 targets (91%); 92 (72%) yielded target-specific binders and 78 yielded poly-specific binders engaging two to four targets. Off-target binding is nonetheless pervasive: every panel target was specifically bound by at least one sequence designed against a different target. These results indicate broad success of Proteina-Complexa across a diverse set of targets. See our preprint for detailed analyses of cross-reactivity, hotspot conditioning effects, and binding specificity patterns.

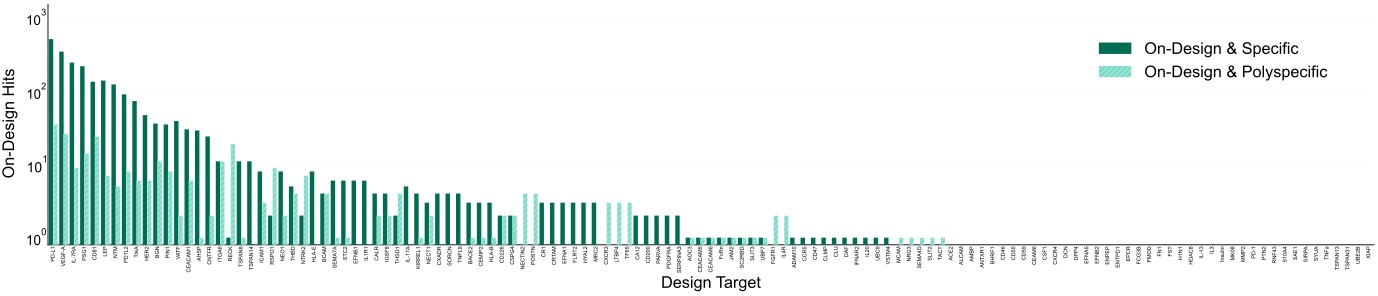

Figure 11. Proteina-Complexa results across the 127-target panel. On-target specific hit count for each target, ranked; 92 of 127 targets were solved, meaning at least one on-target specific hit.

Table 3. Proteina-Complexa on-target coverage of the 127-target panel. A target counts as solved if at least one binder designed against it bound it. The three categories are not mutually exclusive.

Method comparison: end-to-end codesign outperforms all baselines. Separately, for one top-ranked in silico hotspot per target, we also sampled and evaluated contemporary open baselines—RFDiffusion, RFDiffusion3, BindCraft, and BoltzGen—each given an approximately equal compute budget and testing the same number of selected candidates from each method's generated pool. This compute-matched comparison covers the 83 targets where at least one method produced an on-target hit (Figure 12):

• Proteina-Complexa with codesigned sequences achieved a 1.87% target-specific hit rate—more than 3× the next-best method using its own native sequences (BoltzGen, 0.60%) and 1.3× the best redesigned baseline (BoltzGen + ProteinMPNN, 1.44%).
• 702 on-target hits (607 specific) from 32,469 codesigned sequences, compared to 511 (388) for BoltzGen+MPNN, 323 (232) for BindCraft, 61 (57) for RFDiffusion3, and 61 (52) for RFDiffusion.
• Self-generated sequences outperform re-design. For Proteina-Complexa, codesigned sequences (702 hits, 1.87%) outperform both ProteinMPNN-redesigned (323 hits, 1.13%) and fixed-interface redesigned (333 hits, 1.19%) sequences on the same backbones—the only method where this holds. BoltzGen, by contrast, does better with ProteinMPNN redesign (1.44%) than with its native sequences (0.60%). This provides the first large-scale evidence that end-to-end codesign can reduce reliance on separate inverse-folding models.
• High specificity. 86.5% of Proteina-Complexa's on-target hits are target-specific, meaning a given hit is very likely to bind only its intended target and not cross-react with others.

These results establish Proteina-Complexa as a state-of-the-art openly available method for de novo binder design.

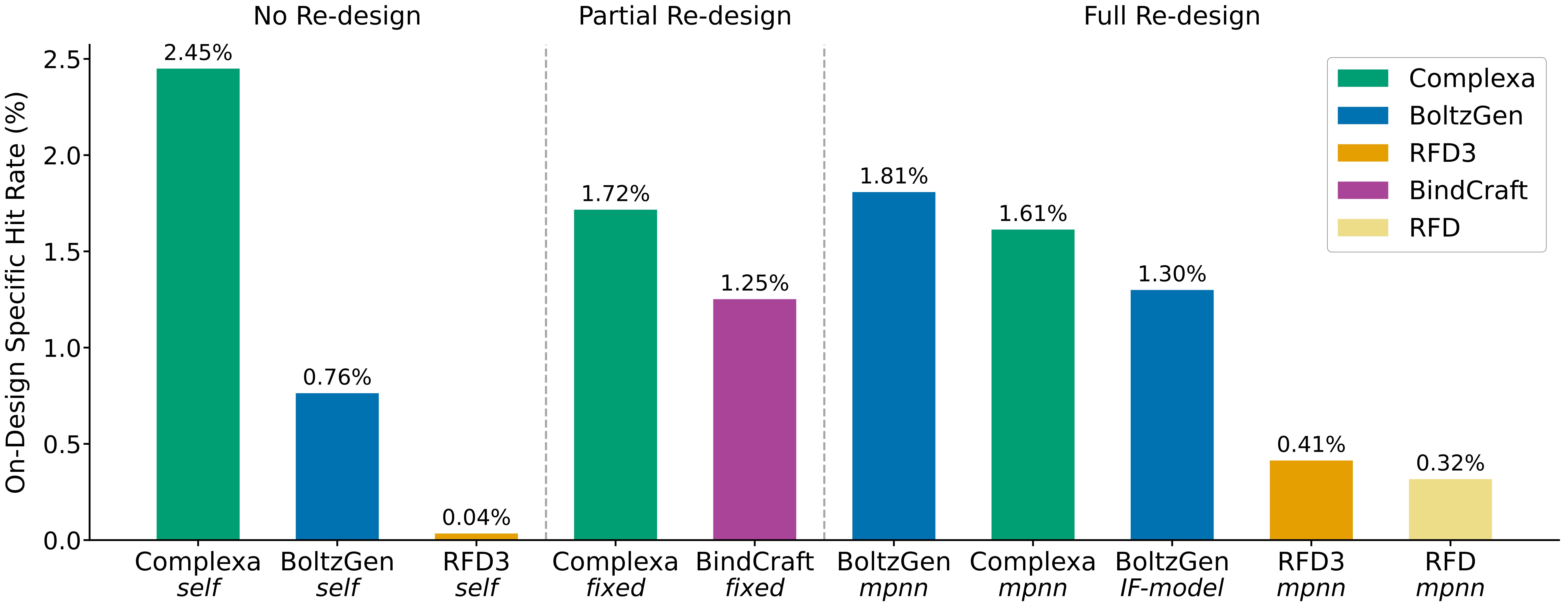

Figure 12. On-target specific hit rate (%) across design methods and sequence-design strategies for sequence sets generated by different methods under matched compute (83 targets). Methods are grouped by re-design strategy: no re-design (native model output), partial re-design (fixed interface), and full re-design (dedicated inverse folding model or ProteinMPNN sequences). Each bar is split into monospecific, poly-specific and poly-reactive fractions; the printed percentage is the total, while the solid monospecific portion corresponds to the target-specific hit rates quoted above.

Picomolar PDGFR Binders

Beyond the large-scale 127-target screen, we tested Proteina-Complexa on individual targets with more careful candidate selection and filtering. PDGFR is a polar receptor previously targeted with specialized approaches such as beta-strand pairing due to its challenging surface. We generated 9,000 candidates across multiple hotspot combinations, applied a two-stage filtering pipeline (physicochemical properties, confidence metrics, and monomer structure validation), and selected 192 designs for experimental testing by surface plasmon resonance (SPR).

• 63.5% hit rate. Of 191 successfully expressed designs, 122 showed detectable binding to PDGFR—an exceptionally high hit rate for de novo binder design.
• Picomolar affinity. Affinities ranged from 93.6 pM to 1.34 μM, with the strongest binder reaching the double-digit picomolar range (the adjacent animation shows the top picomolar binder).

Binders against ActRIIA blocking Myostatin Signaling in Cells

Activin receptor type IIA (ActRIIA) is a high-affinity receptor for myostatin, activins, and GDF11 that suppresses skeletal muscle growth via Smad2/3 signaling. Blocking ActRIIA is an attractive strategy against muscle wasting—relevant to cancer cachexia, sarcopenia, and lean mass loss during GLP-1 agonist therapies. We designed de novo mini-binders targeting ActRIIA's protein-protein interaction interface (the interactive viewer and Figure 13 show the top 5 binders with functional downstream effects):

• Design. Seven rounds varying search algorithms (beam search, Feynman–Kac steering, MCTS) and hotspot conditioning. Top 200 candidates after filtering and scaffold-level clustering; sequences co-generated without redesign.
• Expression & binding. 192 of 200 designs expressed; 16 bound ActRIIA by SPR, 8 with sub-µM affinity. The top five span K_D = 36–390 nM, with #51 tightest at 36 nM. Overall 8.3% hit rate from raw computational designs.
• Diverse solutions. The sub-µM hits share only 6–18% pairwise sequence identity despite a common helical binding mode—distinct solutions rather than one convergent design.
• Functional validation. In a Smad2/3 luciferase reporter assay in HEK293 cells, designs inhibited myostatin (GDF8)-induced signaling with IC₅₀ values from 169 to 1,532 nM (#51: 169 nM; #104: 228 nM)—functional antagonists straight from design, with no affinity maturation.

Figure 13. De novo binders to the muscle-wasting receptor ActRIIA. (a) Rationale for ActRIIA blockade during semaglutide-induced weight loss, and schematic of binder-mediated inhibition of GDF8/activin A signaling through Smad2/3. (b) Predicted structures of five representative designs (#51, #104, #150, #17 and #101; purple) bound to ActRIIA (grey); the binders share a helical binding mode at low pairwise sequence identity (6–18%). (c) SPR sensorgrams (analyte concentration series, legends in nM) with fitted K_D (36–390 nM; tightest design 36 nM). (d) Inhibition of GDF8 (myostatin)-induced Smad2/3 luciferase signaling in cells, shown as GDF8-driven luminescence versus binder concentration, with fitted IC₅₀ (169–1,532 nM).

Designing Peptides and Minibinders against Kinase Targets

Protein kinases govern nearly all biological signaling through phosphorylation of serine, threonine, and tyrosine residues, yet genetically encoded tools for interrogating their catalytic activity remain limited. We designed de novo binders targeting the catalytic domains of two kinases, PAK1 and CK1δ, spanning two distinct size regimes: conventional mini-protein binders for PAK1 and short peptide binders for CK1δ (see interactive structures and Figure 14):

• PAK1 mini-protein binders (49–74 amino acids). PAK kinases are central effectors of Rho-family GTPases regulating cytoskeletal dynamics and cell survival. We generated 50 mini-protein candidates and screened them via a split-NeoR protein-fragment complementation assay in E. coli. NGS analysis classified 20 of 50 designs (40%) as enriched. Four candidates were validated by co-immunoprecipitation in HEK293T cells: Pk3 and Pk4 each achieved ~4.5-fold enrichment (p<0.01 and p<0.05), while Pk6—at the bacterial selection boundary—still showed significant enrichment (2.8-fold, p<0.01).
• CK1δ peptide binders (<31 amino acids). CK1δ plays critical roles in circadian rhythm regulation, Wnt signaling, and neurodegeneration. To test whether Proteina-Complexa can design functional binders in the short-peptide regime, we synthesized 18 peptides via Fmoc solid-phase synthesis, each bearing a biotinylated lysine for streptavidin pull-down against purified GST-tagged CK1δc. 9 of 18 (50%) achieved significant enrichment over the scrambled control (p<0.05), with the strongest binders exceeding five-fold enrichment. A 50% hit rate for peptides under 31 residues—where reduced conformational complexity and minimal binding surface area make design particularly challenging—underscores the generality of the latent codesign framework across the full protein-to-peptide size spectrum. Microscale thermophoresis confirmed direct engagement of the CK1δ kinase domain in the low-to-mid micromolar range: CK3 at K_D = 6.3 µM, CK9 at 10.8 µM, and CK16 at 81.1 µM.

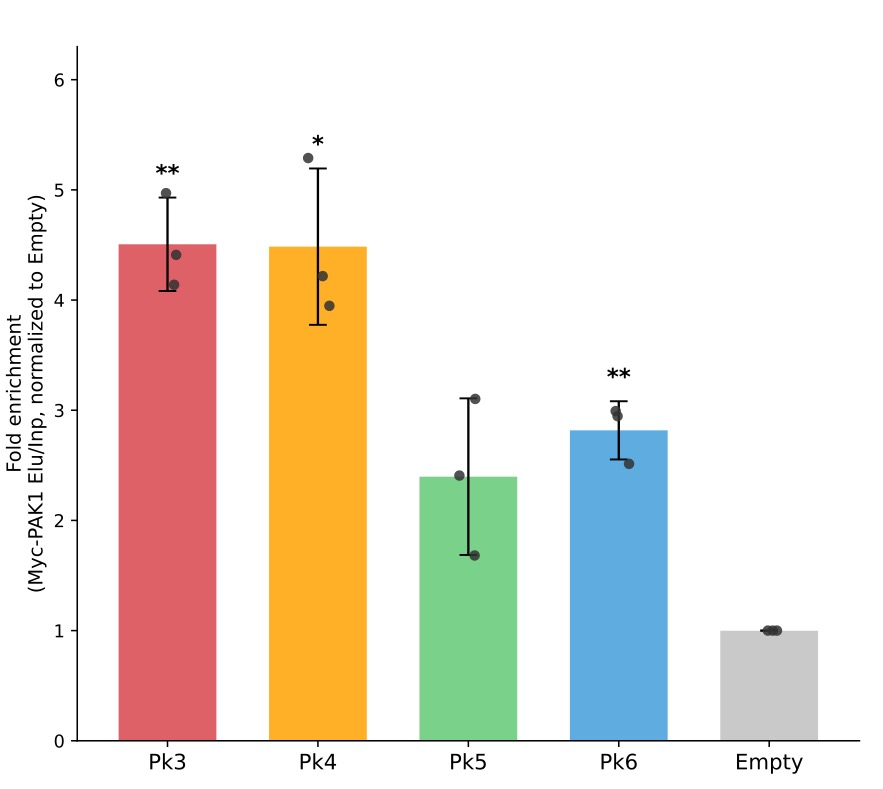

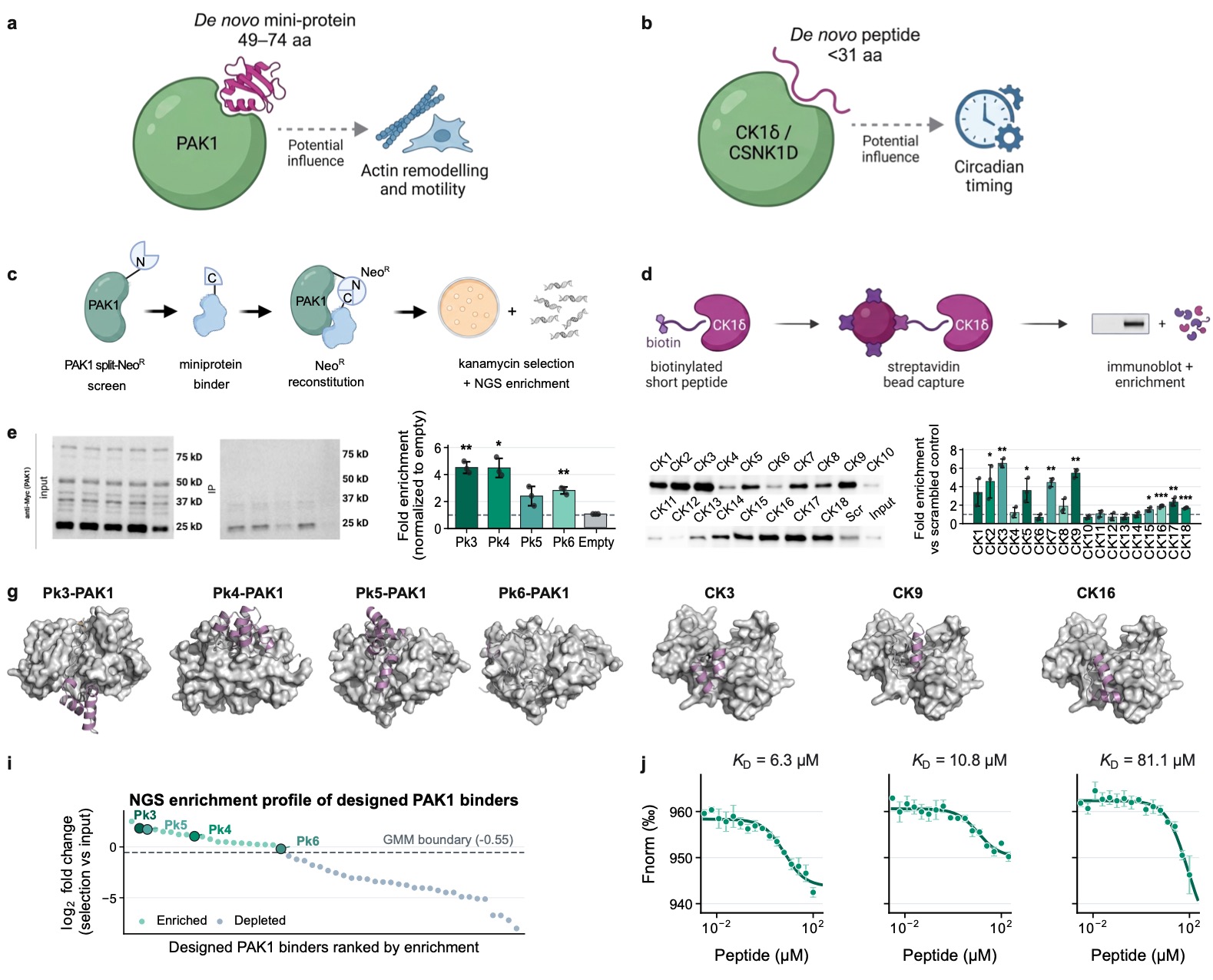

Figure 14. De novo peptide and mini-protein kinase binders. The left column concerns PAK1 mini-proteins (a, c, e, g, i) and the right column CK1δ peptides (b, d, f, h, j). (a) Signaling context for PAK1, a Rho-family GTPase effector, and the 49–74-aa mini-protein design regime. (b) Signaling context for CK1δ, a constitutive Ser/Thr kinase, and the <31-aa peptide design regime. (c) Split-neomycin-resistance complementation assay for PAK1 mini-proteins, read out by next-generation sequencing (NGS). (d) Streptavidin-bead pull-down assay for biotinylated CK1δ peptides. (e) Mammalian validation of PAK1 binders by representative anti-Myc Western blot and fold enrichment relative to empty vector (mean ± SD, n=3). (f) CK1δ pull-down blots and binding enrichment for CK1–CK18 relative to scrambled control (mean ± SD, n=3–4); 9 of 18 are significant (p<0.05). (g) AlphaFold2-Multimer predicted PAK1 complexes for Pk3–Pk6 (PAK1 surface, binder cartoon). (h) Predicted CK3, CK9 and CK16 peptide–CK1δ complexes. (i) Split-NeoR NGS enrichment profile for the 50 PAK1 designs, ranked by fold change, with the Gaussian-mixture decision boundary and Pk3–Pk6 indicated. (j) Microscale thermophoresis dose–response curves for CK3, CK9 and CK16 (K_D = 6.3, 10.8 and 81.1 µM, respectively; mean ± SEM, n=3–4).

De Novo Design and Binder Re-Engineering for the Nipah Virus

The Nipah virus attachment glycoprotein (NiV-G) is a six-bladed beta-propeller that mediates host cell entry by engaging the ephrin-B2 and ephrin-B3 receptors. Its receptor-binding site is a critical neutralization epitope, but the pocket is recessed and partially occluded, making it a challenging design target. As part of the Adaptyv binder competition, we tested Proteina-Complexa in two complementary modes and successfully hit this difficult epitope in both (see interactive structure of the de novo design in the adjacent viewer; quantitative results in Figure 15):

• De novo design. 14 candidates generated from scratch, conditioned on hotspot residues at the receptor-binding site and selected after filtering. One hit identified with K_D = 56 nM, demonstrating that Proteina-Complexa can target difficult viral epitopes without any starting scaffold.
• Diffuse-denoise re-engineering. An existing scaffold is partially noised and jointly re-generated in backbone and sequence, corresponding to true structure-sequence codesign, not fixed-backbone optimization. 5 of 6 candidates showed nanomolar binding (NI1–NI5, K_D = 3.5–21 nM), all engaging the receptor-binding site.

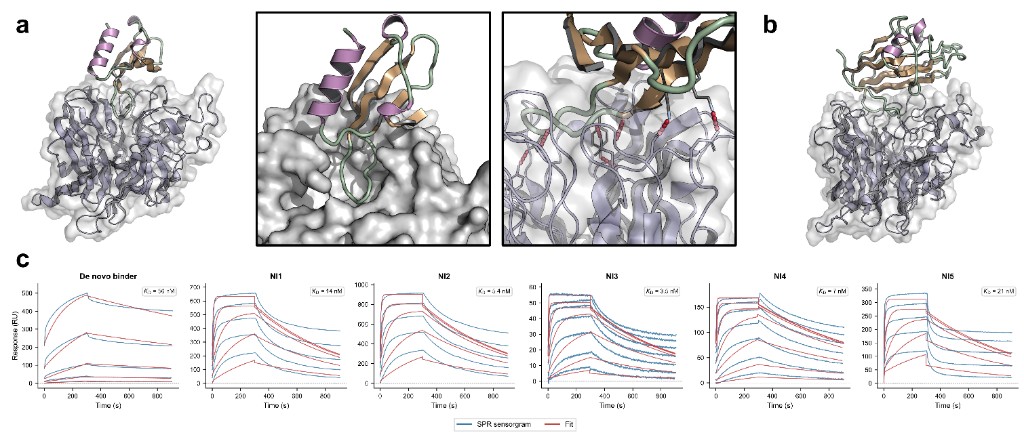

Figure 15. De novo design and binder re-engineering for NiV-G. (a) Generated de novo binder; zoom-ins into binding pocket and interface hydrogen bonding (K_D = 56 nM). (b) Re-engineered binder via diffuse-denoise protocol: an existing scaffold is partially noised and re-generated. (c) SPR sensorgrams for all binders, with equilibrium dissociation constants (K_D) annotated: the de novo binder at 56 nM and the five re-engineered binders NI1–NI5 at 14, 5.4, 3.5, 7 and 21 nM.

De Novo Binder Design for Carbohydrates

Carbohydrates are small, densely polar, and present hydroxyl-rich surfaces with no hydrophobic character—no computational method had previously designed a protein that binds a free carbohydrate. We targeted the type II A pentasaccharide, the blood group A antigen central to ABO transfusion and transplant compatibility, which differs from the B antigen only in its terminal sugar (N-acetylgalactosamine rather than galactose). See Figure 16 and a confirmed hit in the adjacent animation:

• Design. Search was steered by pocket burial and hydrogen bond rewards, with RosettaFold3 re-predicting the complex at every step so that binder and glycan conformation co-evolved rather than treating the flexible sugar as rigid.
• Binding. Of 23 designs under 10 kDa, 15 passed the fluorescence polarization threshold, confirmed by competition with unlabelled sugar and by biolayer interferometry. Fitted affinities span K_D = 10.1–814.3 µM.
• Red blood cell typing. Immobilized on beads to confer multivalency, six designs agglutinated red blood cells. Design 3 agglutinated type A₂ cells but not type B, discriminating between the two antigens.
• Structural rationale & novelty. Design 3 places a tyrosine to hydrogen bond the N-acetyl group unique to the A antigen, which may explain its specificity. It has no detectable sequence homologue and no structural relative by Foldseek.

To our knowledge, these are the first de novo designed proteins that bind a free carbohydrate, including one that discriminates between blood group antigens.

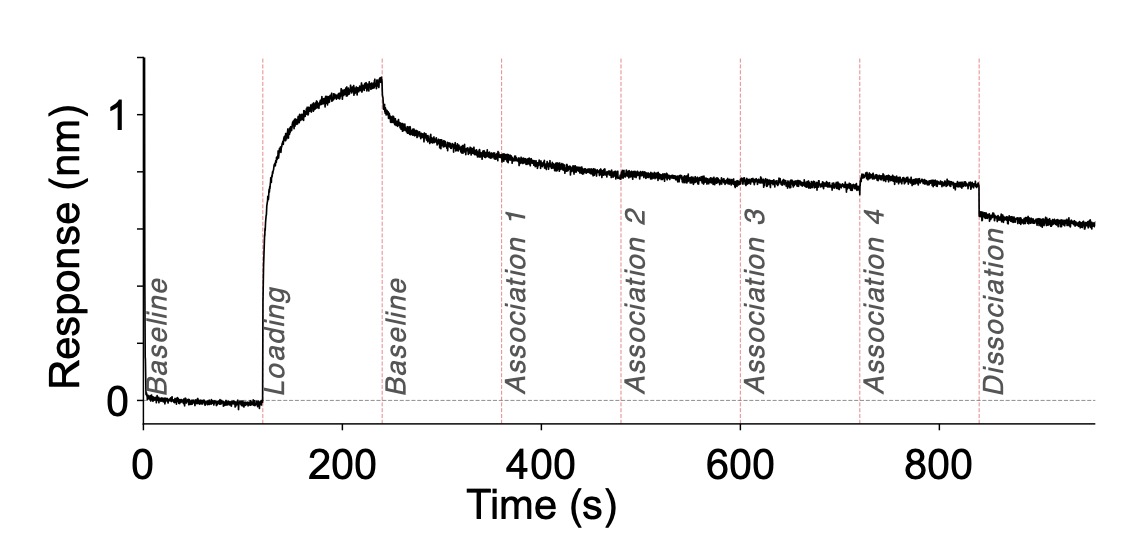

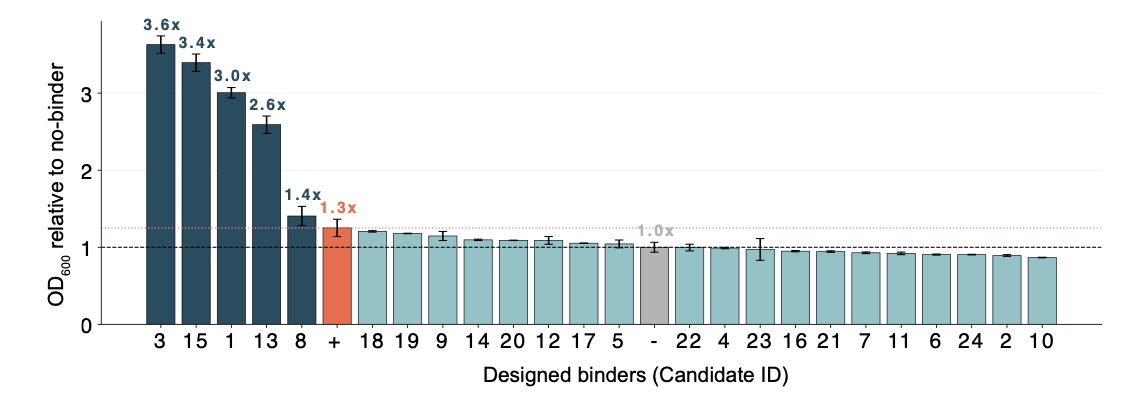

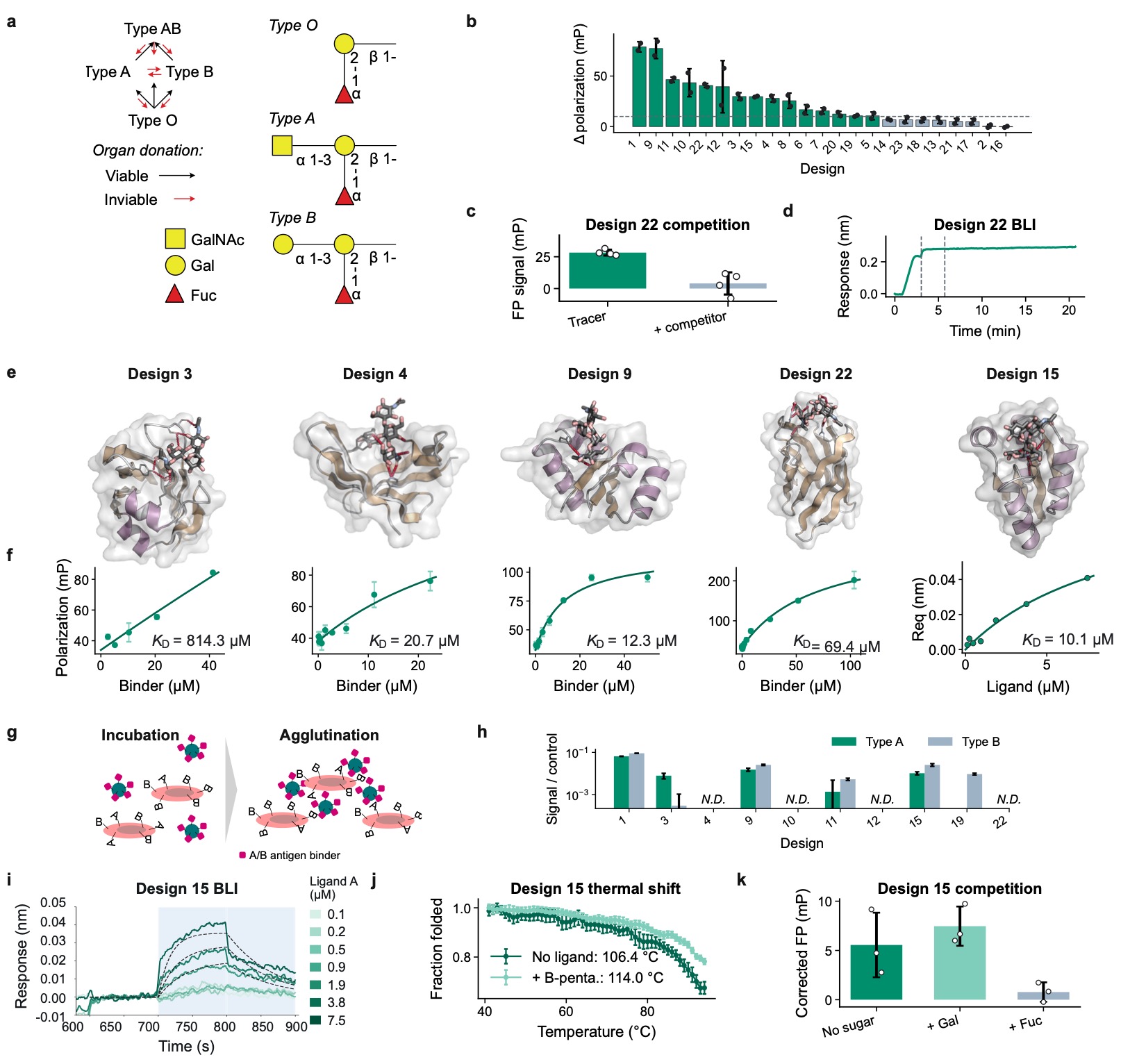

Figure 16. De novo binders that recognise a blood group carbohydrate antigen. (a) Principle of ABO blood group compatibility and schematic structures of the A, B and O(H) antigens; the A antigen terminates in N-acetylgalactosamine (GalNAc), the B antigen in galactose (Gal). (b) Fluorescence polarization (FP) screen of designs 1–23 against fluorescently labelled type II A pentasaccharide; 15 designs pass the +10 mP threshold. (c) Excess unlabelled type II A competes design 22 binding back to baseline. (d) Biolayer interferometry (BLI) trace of design 22 against immobilised biotinylated type II A glycan. (e) Predicted glycan-bound structures of designs 3, 4, 9, 22 and 15. (f) Concentration-dependent binding of the same five designs, measured by FP (designs 3, 4, 9 and 22) or BLI equilibrium response (design 15), with fitted K_D; the design 3 estimate lies above the measured concentration range. (g) Agglutination assay in which His₆-tagged binders are immobilised on Ni-NTA beads to confer multivalency before incubation with red blood cells. (h) Type A₂ and type B red blood cell agglutination relative to blank-bead controls (N.D., no agglutination above the negative control). Design 3 agglutinates A₂ but not B. (i) BLI of immobilised design 15 against a type II A pentasaccharide–DNA conjugate. (j) Circular dichroism thermal shift of design 15 with and without type B pentasaccharide (106.4 °C → 114.0 °C). (k) FP competition for design 15: 30 mM D-galactose does not compete, whereas 250 µM L-fucose abolishes the signal.

Designed Monomers and a Crystal Structure

Binder design rests on a model that generates designable backbones and realistic sequences. We tested this directly on monomers, asking whether Proteina-Complexa's codesigned sequences express, fold, and stay soluble as well as sequences assigned afterwards by ProteinMPNN (interactive overlay and Figure 17):

• Design set. 48 monomers spanning 100–800 amino acids, half with codesigned sequences and half redesigned with ProteinMPNN, including shared backbones for a controlled comparison.
• Codesign matches inverse folding. 41 of 48 constructs expressed solubly, with SEC–MALS confirming the expected monomeric mass and circular dichroism showing folded, highly thermostable proteins. Codesigned and ProteinMPNN-designed sequences performed comparably—to our knowledge the first experimental evidence that a codesign model's direct sequence output matches a dedicated inverse folding model.
• Crystal structure. A representative 800-residue design, a length at which most design methods fail, was crystallized and solved by X-ray crystallography at 2.95 Å, matching the design model to 2.08 Å backbone RMSD.

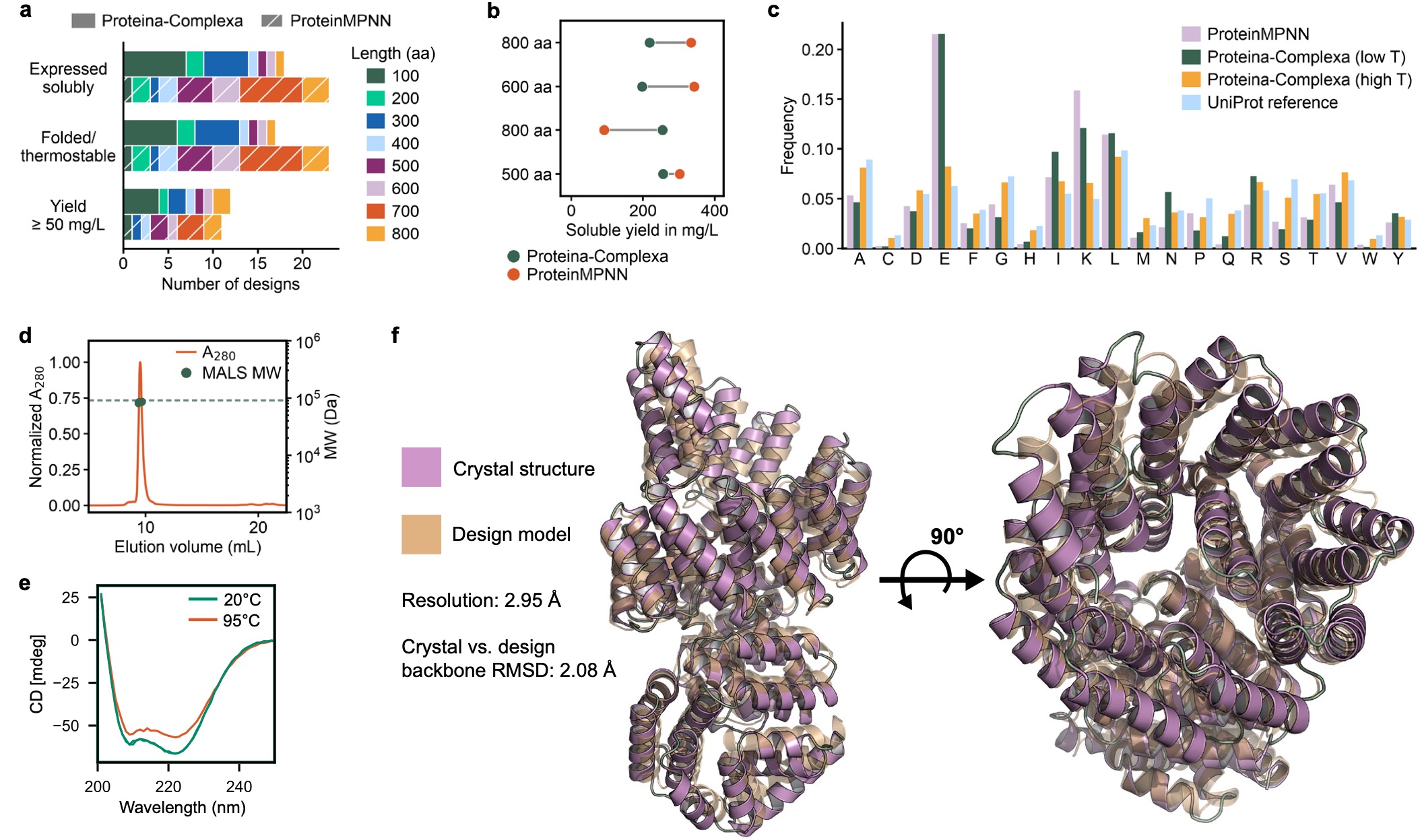

Figure 17. Designed monomeric proteins. (a) Outcomes for 48 designed monomers (100–800 aa): soluble expression, thermostable folding and yield, comparing codesigned (Proteina-Complexa) and ProteinMPNN-designed sequences. (b) Expression yield comparison between Proteina-Complexa codesigned and ProteinMPNN-designed sequences for four shared backbones. (c) Amino-acid composition of codesigned sequences (Proteina-Complexa, low and high sampling temperature) versus ProteinMPNN-designed sequences and a UniProt reference. (d) Size-exclusion chromatography (SEC) profile overlaid with the molecular weight determined by multi-angle light scattering (MALS) for a representative 800-residue design. (e) Circular dichroism (CD) spectra at 20 °C and 95 °C for the same design. (f) Crystal structure of the same design (purple) overlaid on its computational model (wheat). The structure was determined at 2.95 Å resolution and resolved 794 of 800 residues; only loop residues 311–316 were unresolved. The backbone RMSD between the resolved experimental structure and the design model is 2.08 Å.
